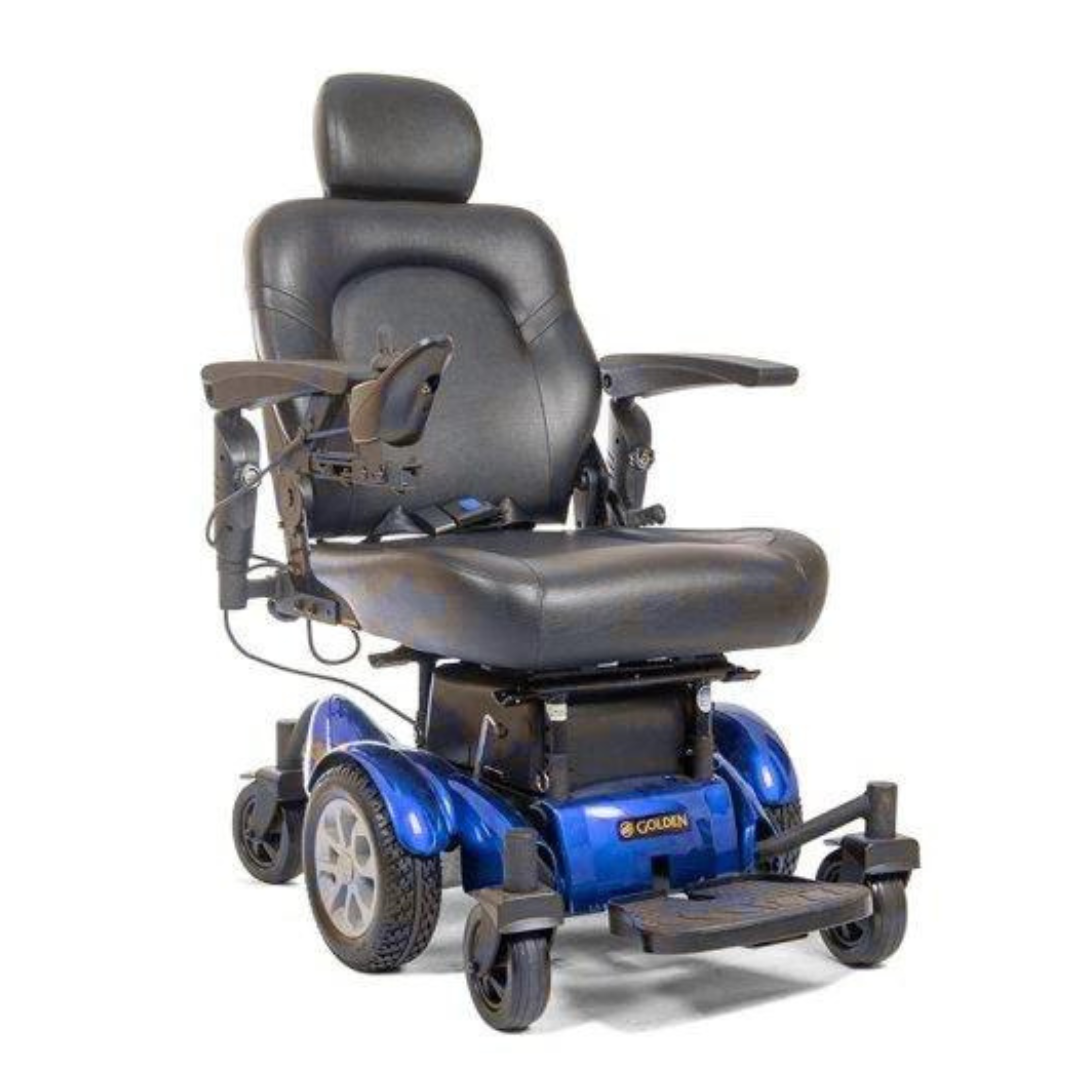

The Golden Compass HD offers you a stable, center-wheel-drive platform and an articulating chassis for stability over tough terrain. A bigger, beefier version of the popular Compass Sport, the Compass HD has a 450 lb. weight capacity, yet a modest 20-inch turning radius. It comes standard with a captain’s seat and our exclusive fold-flat seat hinge design for easy transport.
The Compass HD features front and rear height-adjustable seat posts, padded flip-up armrests, an easy-to-use sliding seat bracket and a fully adjustable footplate. With this lineup of features, the Golden Compass HD can take you to
Features:
Standard captain’s seat with our exclusive fold-flat seat hinge design
Optional seating includes ProFlex Seat and van/pan seat
Exclusive slide seat mechanism for easy seat removal and attachment
450 lb. weight capacity
Adjustable head rest and armrests
75 amp peak Dynamic Shark controller standard
Off-board charger
Accessories available: elevating leg rests, specialty leg supports, swing-away footrests, footplate extender
Uses 22NF batteries
Model Number: GP620
Specifications
Top Speed: 4.00 mph
Turning Radius: 20.00"
Ground Clearance: 3.50"
Heaviest Piece: 101 lbs.
Maximum Incline Rating: 6 º
Battery Charge Distance: 12.00 miles
Drive Type: Mid Wheel Drive
Foldable: Yes
Disassembles: No
Standard Seat: Captain's Seat
Standard Seat Size: 20” x 20”
Standard Back Height - no headrest: 21"
Standard Back Height – w/ headrest: 28.5”
Maximum Seat to Floor Height: 23"
Overall Width: 25.00"
Overall Length: 40"
Adjustable Angle Footplates: Yes
Dampening Adjustment: No
Frame Type: Heavy-duty
Batteries: 2-NF22
Batteries Included: Yes
Battery Charger Type: Off Board
Drive Wheel Size: 10"
Caster Size: 6"
Rear Caster Size: 6"
Base Weight: 101.00 lbs.
Standard Seat Weight: 51.00 lbs.
Battery Pack Weight: 74.00 lbs.
Weight Without Batteries: 155.00 lbs.
Tire Type: Foam Filled
Videos
Warranty
•Warranty – Electrical Parts: 13 months
•Warranty – Batteries: 1 year
